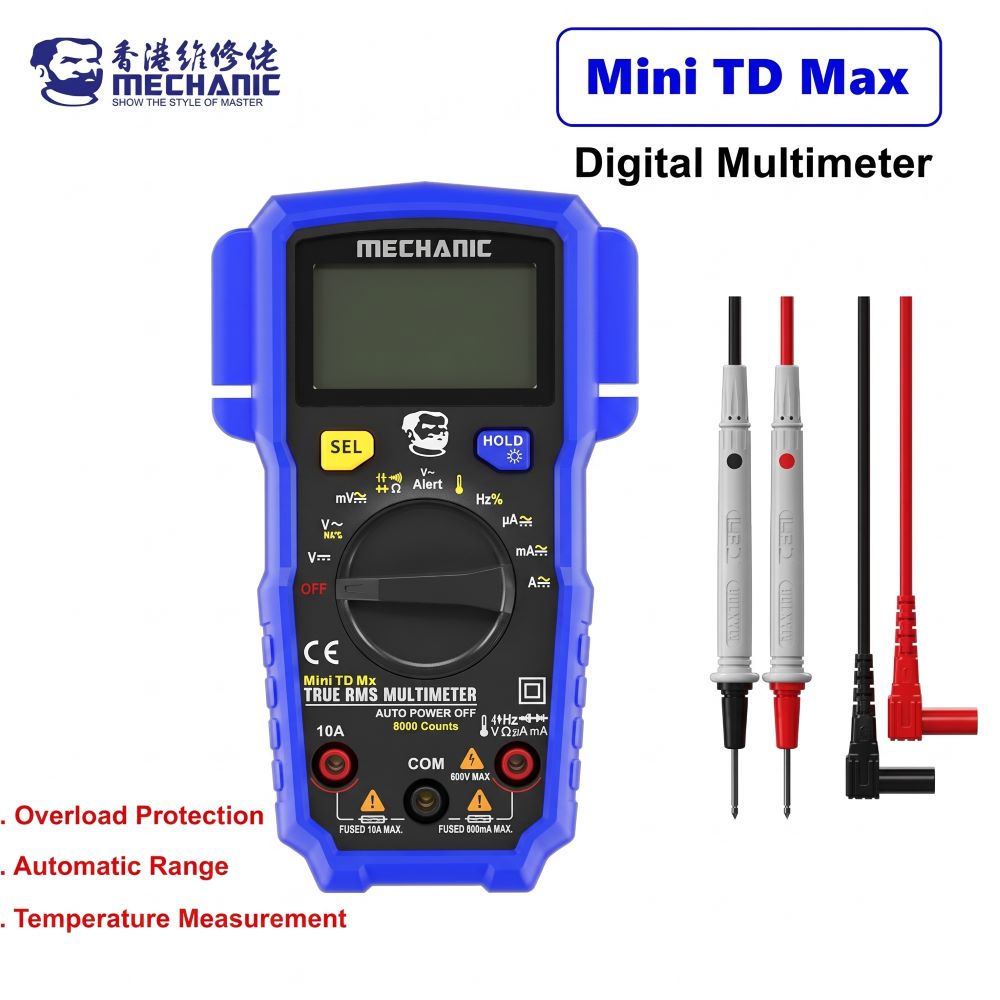

MECHANIC Mini TD Max Digital Multimeter
The MECHANIC Mini TD Max is a True RMS auto-ranging digital multimeter designed for technicians and hobbyists who need accurate, reliable readings without manually selecting measurement ranges. With an 8000-count display, NCV live-wire detection, and temperature measurement, it's built to handle both everyday household checks and professional electronics/repair work.
Key Features
- True RMS Measurement: Accurate readings even on non-linear AC waveforms
- Automatic Range Selection: No need to manually switch ranges for most measurements
- 8000 Counts Display: High-resolution LCD for precise readings
- NCV (Non-Contact Voltage Alert): Detects live AC voltage without direct contact
- Temperature Measurement: Built-in temperature testing function
- Overload Protection: Fused inputs (10A max / 600mA max) protect against accidental overload
- Backlit Display with HOLD Function: Read measurements clearly and freeze values for recording
- Auto Power Off: Automatically shuts down to save battery when idle
Measurement Functions
| Voltage | AC/DC Voltage (V~, V⎓, mV) |
| Current | AC/DC Current (µA, mA, A) — Fused 10A Max |
| Resistance | Ω, Continuity Buzzer, Diode Test |
| Frequency | Hz / Duty Cycle (%) |
| Temperature | Supported |
| NCV | Non-Contact Voltage Alert |
| Display | 8000 Counts, Auto Range, Backlight |
| Max Voltage Input | 600V Max (COM) |
Who Is This For?
Ideal for mobile/electronics repair technicians, electricians, and DIY hobbyists who need a dependable True RMS multimeter with auto-ranging convenience and added safety features like NCV and overload protection.
What's in the Box
- 1 x MECHANIC Mini TD Max Digital Multimeter
- 1 x Pair of Test Leads (Straight + Alligator Clip style)
Frequently Asked Questions
Is the Mini TD Max a True RMS multimeter?
Yes, it's a True RMS auto-ranging multimeter, giving accurate readings on both linear and non-linear AC signals.
Does it have non-contact voltage (NCV) detection?
Yes, it includes an NCV alert function to detect live AC voltage without touching the wire.
Can this multimeter measure temperature?
Yes, it has a built-in temperature measurement function in addition to standard electrical measurements.
Does it have auto power off to save battery?
Yes, the meter automatically powers off when left idle to conserve battery life.
